MODEL: ZK6122HD9

Bus appearance
  • Seating Capacity: 49 - 51
  • The electric appliances compartment is located behind the left rear wheel
  • The fuel tank is located in front of front wheel; there are refueling openings both in the right and left sides
  • LED lights are used for all rear lights including brake lights
  • Additional small luggage compartment above the tires
  • The color of the nylon wheel cover can be the same with the bus body
  • Manual up-moving luggage compartment door

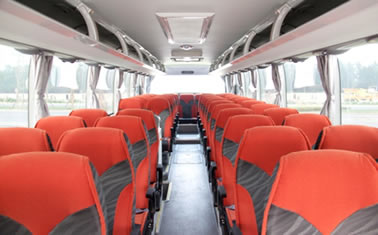

Interior Trimming
  • Two half sized sunshade screen for the windshield; driver window sunshade screen
  • Front fixed 17' LCD; foldable 15'LCD in the middle
  • Luggage rack support with LED lights
  • The interior lights are controlled individually
  • The interior trimming with heat-resistant softening materials; the roof plate and apron board covered with cloth fabric
  • The front digital display screen shows the various service information with synchronization
  • The passenger seat back can be adjusted forward and backward, and side-sliding; and mesh bags, adjustable armrest and the seat is with full cloth fabric
  • The new model of A/C air outlet with reading lights, which can be controlled by the passengers
  • stainless steel guard rail, a tourist guide back behind the driver seat; 10. Drivers seat adjustable with air suspension.

Technical Data

BASIC

 length*width*height 11600*2550*3830 Wheel base,front overhang/rear overhang(mm)(mm) 5650,2620/3330 Max Speed（km/h） 125 Luggage space(m3) 10



 Interior Height 2010 (Tread front/rear mm) 2080/1860 Approaching angle/Departure angle(°) 8.5/9 Minimum Ground Clearance
Kerb mass(kg) 13600 Front shaft/rear shaft(kg) 4500/9100 Maximum total mass(kg) 17750 Front shaft/rear shaft(kg) 6250/11500
Min.turning diameter 22 Max seat capacity 51 Chassis Max bearing allowance 18000 Front shaft/Rear shaft(kg) 6500/11500

Engine

Emission

Model

Displacement（L）

Rated power(kW/rpm)

Rated torque(N.m/rpm)

Model of the bus

Fuel


Euro II

Cummins L300 20

8.9

213/2200

1160/1200-1600

ZK6122HD9

Disiel


Euro III

Cummins ISLe 310 30

8.9

228/2100

1200/1000-1700

ZK6122HD9

Disiel



Item

Standard

    JTL  Standard

Option

chassis

 Clutch SACHS GMF430 ,hydraulic remote control with pneumatic assistance
Gearbox Qijiang  S6-90
Three flexible shaft romote control，low gears close to the driver
Front Axle Jingyida axle(Bearing capacity 7500kg),disc brake
Rear Axle Dongfeng axle(11500kg),drum brake,final drive  ratio:4.1
Retarder TELMA Retarder(F191)
Suspension 6 gasbags suspension   leaf spring suspension,front suspension with transverse stabilizer;front and rear bidirectional telescopic shock absorber
Thermo Management Engine Thermo Management
ABS/ASR,Slack adjuster WABCO ABS , rear axle with automatic clearance adjuster Braking valves with silencers
Steering System left hand drive，ZF8098，steering wheel adjustable up and down Right hand drive
Tyre 6+1，Double Coin 295/80R22.5 tubeless meridian tire，rear wheel inner tube with air inflation extension bar
Fuel Tank（L） 400
Others Import clutch master，brake slave cylinder;
WABCO air dryer（with silencer）；brake master cylinder with silencer
  • Front and rear air inflation joint;
  • -rear and front with towing hook;

  • -rear and front with towing hook;
  • Front and rear air inflation joint;




 Inner trimming Integral A/C air flue, high temperature resistant interior
  •



Inner

trimming

 Floor structure Concave floor structure,bamboo floor with plastic flooring   flat floor structure
Luggage rack Open inner luggage rack Private driver’s box on the rack aviation inner luugage rack
The first passenger door Front pneumatic outward swing door,parallel bar positioned inside Front pneumatic outward swing door,parallel bar positioned outside
The second passenger door Middle pneumatic outward swing door,without toilet Delete the middle door
Emergency door none Emergency exit door on the side of the driver
Driver  window Green color inbedded style sliding window
Side window Dark grey glass fully sealed  windows(with the last rear windows lower sliding on both sides)
Front/rear windshield Doubling spliced glass front windshield,tempering glass rear windshield Front split windshield
Side luggage compartment door Aluminium upturning side luggage compartment door Aluminium up moving compartment door Aluminium up moving compartment door
Luggage compartment Compartment floor covered with plastic flooring Aluminium compartment floor
Seat 49+1+1(two doors)，ECO033 type seat（adjustable and transversely movable except the last row of seats）
  • 51+1+1 EC0033 with one front passenger door;

  • 51+1+1 EC0033 with one front passenger door;
  • 47+1+1 EC0033 with two doors and middle toilet;
Seat Accessories Armrest mesh bag,pedal,driver seat and guide seat(with triple point safety belts),dual point safety belts for all the passengers. â–¡stainless cup holder;
â–¡driver’s seat with cushion;		 â–¡meal tray(only with YT03 /EC0031 Models)
â–¡stainless cup holder;
â–¡driver’s seat with cushion;
A/C Independent roof mounted A/C(cooling capacity 32000Kcal/h),BOCK air compressor German Bitzer air compressor German Bitzer air compressor
Heating system None
Defrosting system Defrosting with natural wind
Exterior rear view mirror Power driven rod style rear view mirror
Guard rail Stainless steel guard rail with guide backboard behind the driver,stainless steel guard rail behind the passenger door
Window curtain Gray soft cloth curtain Yellow soft cloth curtain with fixed rope at the bottom
Sunshade screen Two half sized front windshield screens,driver window screen
door rail Soften rail
Refrigerator Direct current imported refrigerator   Hot/cold drinking fountain
Safety hammer 4 safety hammers
Roof hatch 2 roof hatches with ventilator
Fire extinguishing equipment Automatic fire extinguishing system in the engine compartment,one 2kg fire extinguisher   3 fire extinguishers inside the bus
Wheel cover Full size nylon wheel cover   Half size stainless steel wheel cover
Others Cloth hook for the driver   Stainless steel medical box;
Passport box;
160L washing hand water tank
Electric appliances system 24v,single wire system,negative earth
Sensor alarm Retarder with temperature sensor alarm
Lights Integral front lamp,combination rear tail lamp,high postion brake lamp,front 2 white rear 2 red height indication lamp,elliptic type interior illumination lamp Front yellow and rear red height indication lamps
Power supply system 180G51-MF 160Ah flat column battery/28V,140A+150A A pair of 6-QA-195Ah columnar extremely column batteries A pair of 6-QA-195Ah columnar extremely column batteries
audiovisual system SD Player(8G,non-high definition),front fixed 17’LCD,middle foldable 15’LCD manual operation;one wired microphone Multi-disc DVD,front fixed 17’LCD,middle foldable 15’LCD manual operation;one wired microphone Multi-disc DVD;
Middle power driven 15’LCD;
Parking accessory system One detector color monitor   Two detectors color monitors(reversing monitoring and monitoring getting-off at the middle door)
Monitor recording system None   Driving recorder
Electric appliances Interior LED rolling road plate,claxon,a pair of wiper(3.5 water reservoir) Electronic and air horn,claxon Electronic and air horn;
Fetching electricity apparatus
Paint Domestic metal paint
others     120km/h speed alarm system


Usage information Usage：□ Passenger Transportaion  â–¡ Tourism â–¡ Labor   â–¡ Urban  Transportation   Road condition：□ Highland â–¡ Mountain Area   â–¡ Highway â–¡ Ordinary Road  â–¡ Downtown         Speed（km/h）：□ <70  â–¡ 70~100  â–¡ about 110
